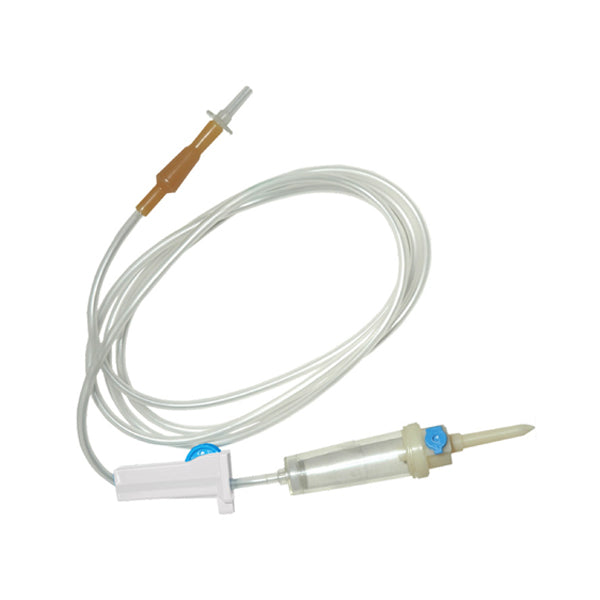

An infusion set with an air vent (commonly known as a vented IV set) is a specialized medical administration device featuring a built-in air inlet channel, typically located near the spike housing or above the drip chamber. The core purpose of the air vent is to allow outside air to enter the container as fluid drains, preventing a vacuum lock and ensuring a smooth, continuous fluid flow.
Key Functions and Clinical Uses
-
Rigid and Semi-Rigid Containers: Vented IV sets are mandatory when administering fluids from glass bottles or hard plastic bottles (such as certain specialized antibiotics or paracetamol formulations). Because these containers cannot collapse as fluid empties, they require external air displacement to function.
-
Bacterial Filtration: To maintain systemic safety, the air vent is equipped with an integrated 0.2-micron hydrophobic bacterial filter (often with a snap cap). This membrane allows necessary gas exchange for pressure equalization while completely keeping out airborne pathogens and preventing fluid leaks.
-
Universal Applications: Many modern vented sets feature a built-in flap or snap cap. This allows them to function universally: the cap is left closed when using standard, collapsible plastic bags, and opened only when spiking rigid bottles.
Vented vs. Non-Vented IV Sets
Direct comparison helps dictate proper clinical workflows depending on the fluid reservoir:
|
Feature
|
Vented IV Infusion Sets
|
Non-Vented IV Infusion Sets
|
|
Spike Mechanics
|
Dual-lumen spike (fluid conduit + air inlet channel)
|
Single-lumen spike (fluid conduit only)
|
|
Container Compatibility
|
Rigid glass vials, hard plastic bottles, and semi-rigid containers.
|
Fully collapsible flexible plastic bags (Saline, D5W, Ringers).
|
|
Fluid Flow Principle
|
Relies on gravity paired with atmospheric air pressure to push fluid down.
|
Relies on gravity causing the flexible bag to naturally collapse on itself.
|
|
Risk if Misused
|
Opening the vent on a flexible bag can cause structural line leakage.
|
Using a non-vented set on glass will cause the infusion to stall completely.
|
General Operational Tips
-
Priming the Line: Always ensure the air vent flap is firmly closed before initially spiking any container to prevent fluid from inadvertently flooding the internal air vent mechanism during setup.
-
Vent Activation: Hang the container on the IV pole and fill the drip chamber halfway. If using a rigid container, pop open the vent cap after the line is primed to initiate a smooth flow rate.
